Diamond Wire Saw (Precision Cutting)

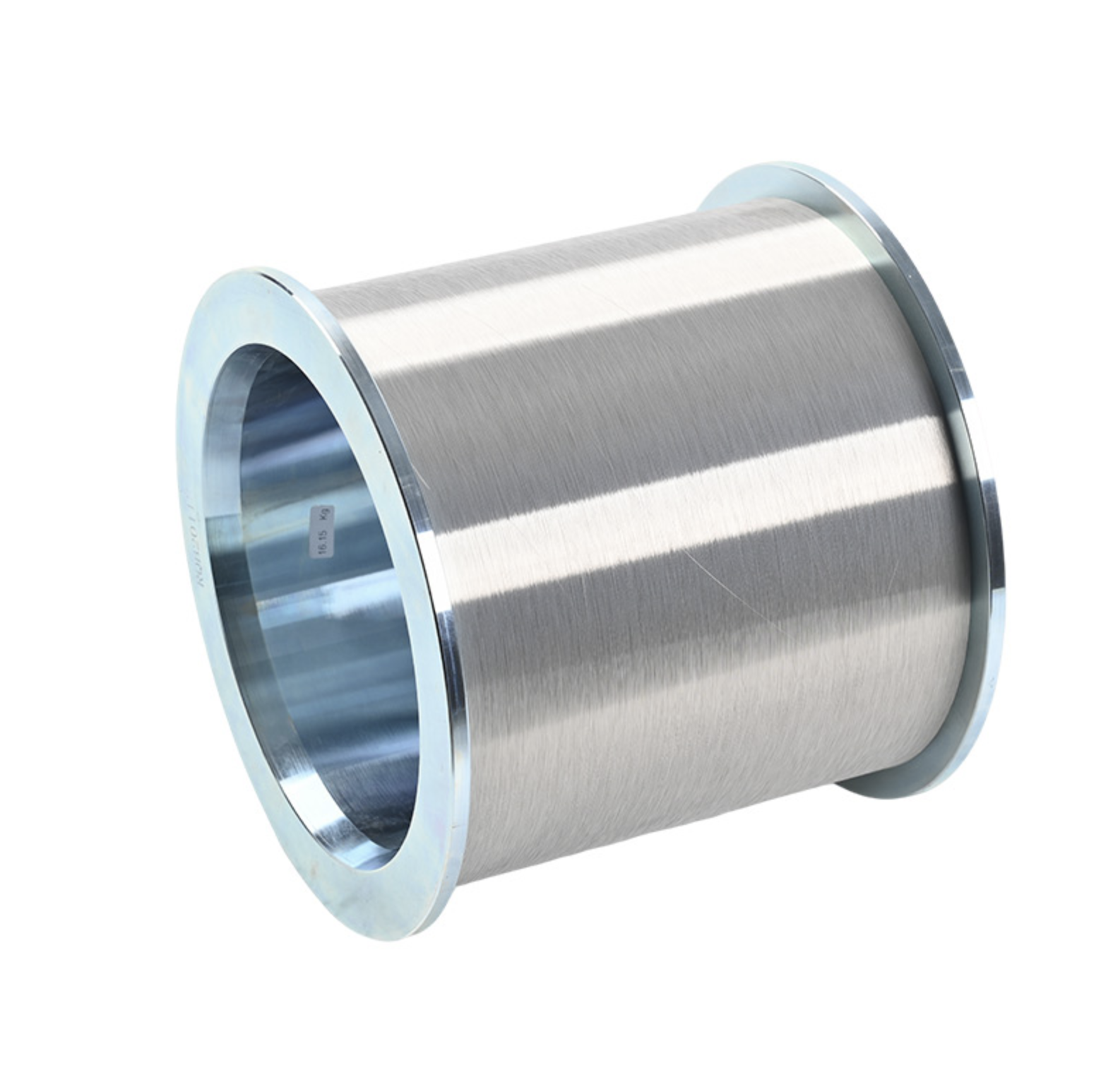

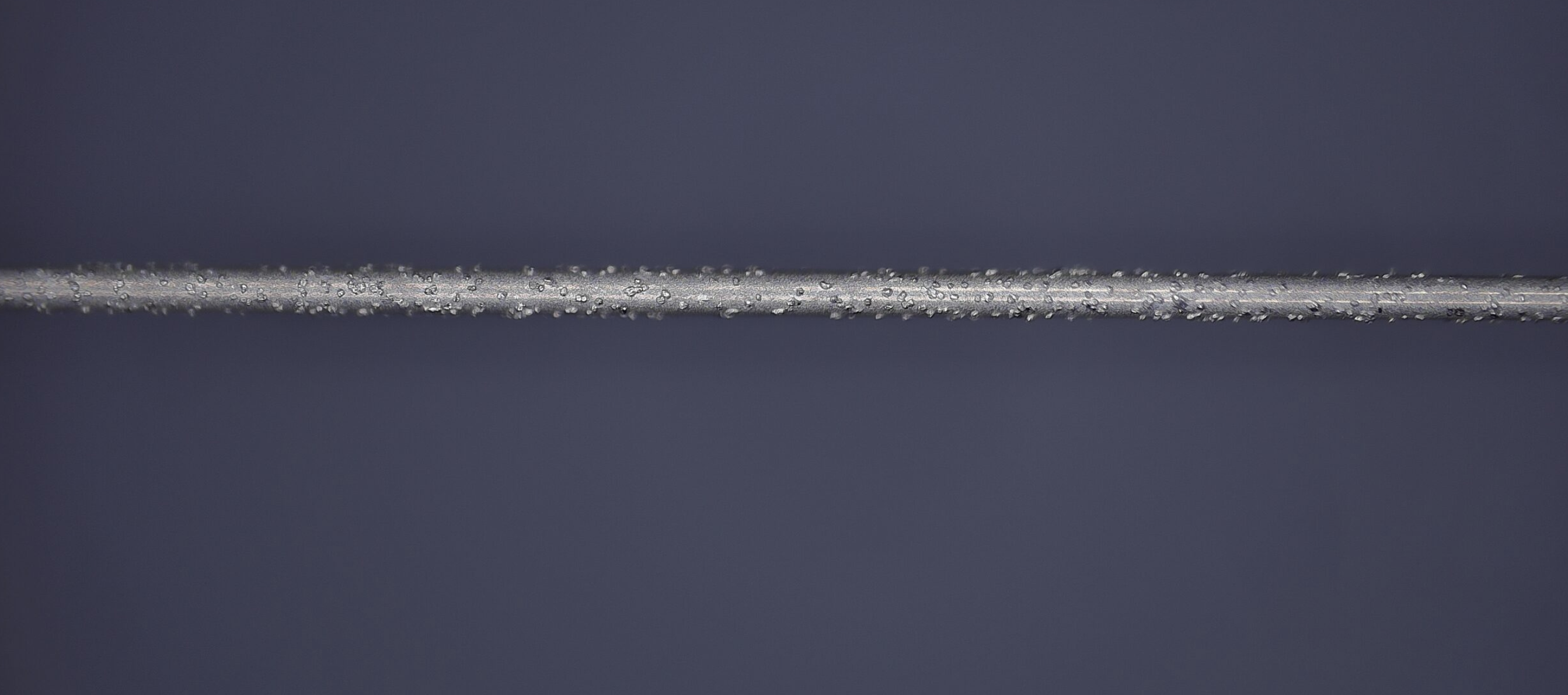

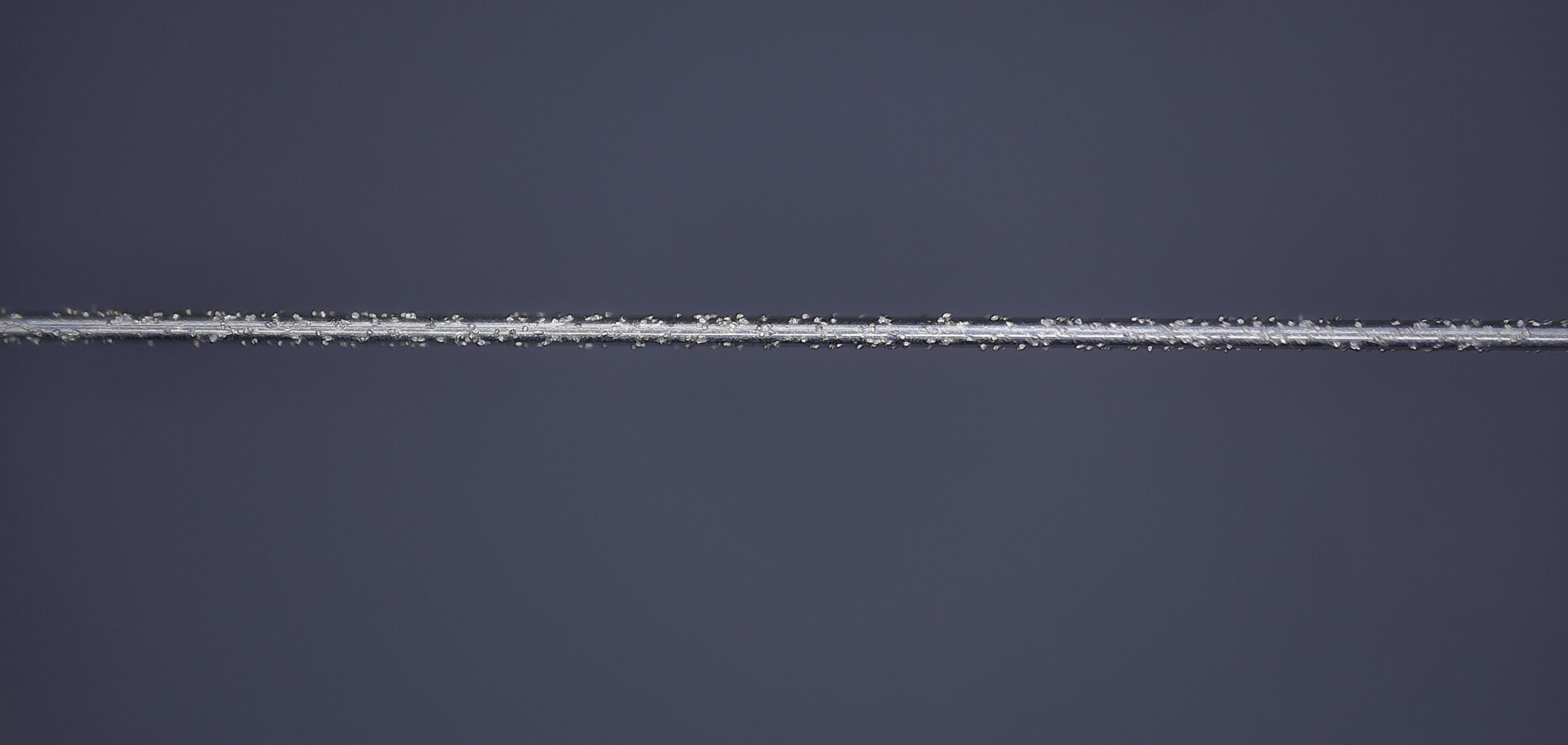

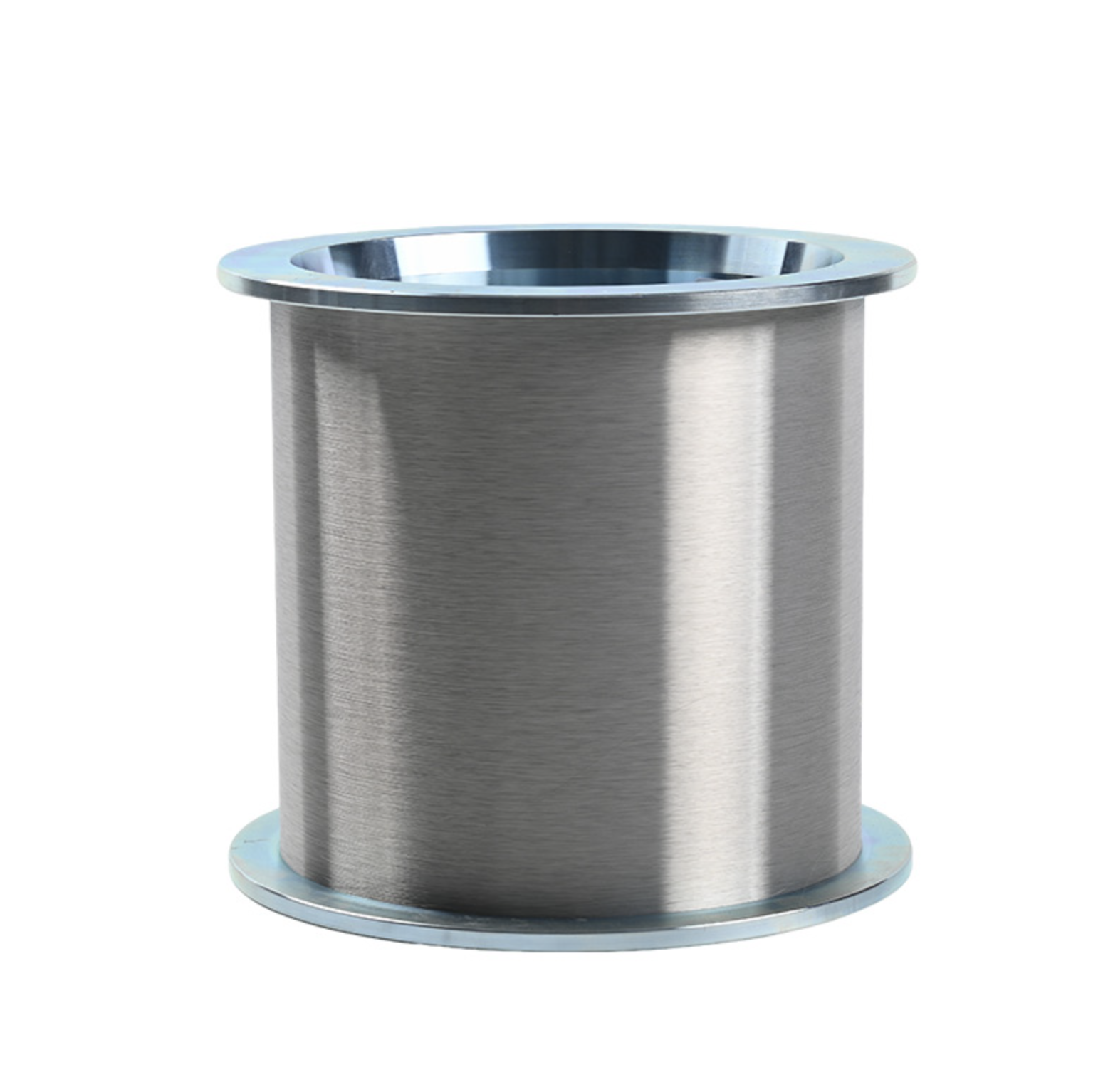

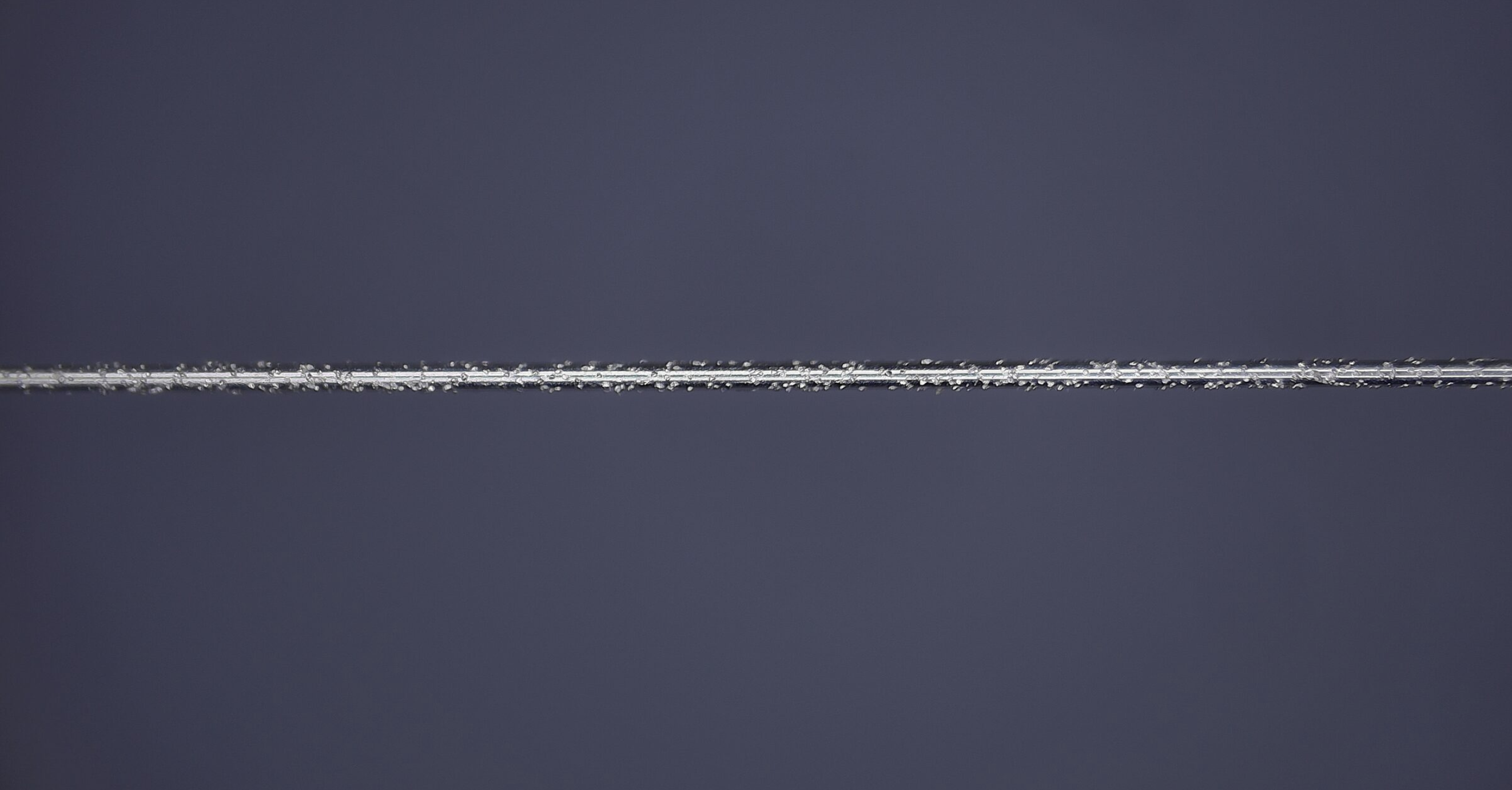

Fine Carbon Steel Diamond Wire (34-60μm)

A cost-effective diamond wire suitable for cutting photovoltaic silicon wafers (210 mm/182 mm), semiconductor wafers and general hard, brittle materials. Featuring a high-carbon cold-drawn steel core and a three-layer composite coating, it is produced using a well-established process and is available with consistent supply. Offering a cost advantage whilst ensuring cutting quality, it is the mainstay product for routine slicing.

Request a Quote

Overview

Product overview

1. Base material: high-carbon steel (C ≥ 0.8 per cent); the busbar diameter corresponds to the finished wire diameter (e.g. a finished wire of φ35 μm corresponds to a busbar of approximately 30 μm). 2. Coating structure: Pre-plated nickel undercoat (0.8–1.5 μm) + diamond grit + thickened nickel-cobalt alloy layer (0.5–5 μm), total coating thickness 2.5–7.0 μm. 3. Diamond concentration: 110–210 grains/mm (customisable). 4. Typical applications: Cutting of monocrystalline and polycrystalline photovoltaic wafers, semiconductor wafers (8-inch and below), sapphire slices, etc. 5. Wire breakage rate: Standard photovoltaic applications ≤ 6 breaks per 1,000 km; thin-slicing ≤ 6 breaks per 1,000 km; semiconductors ≤ 0.03 breaks per 1,000 km (based on a stable process). 6. Cutting life: Photovoltaic wire saws 120–360 km per coil; semiconductors 80–120 km per coil.

Features

Key features and parameters

Technical specifications
Specification	Value
Excellent mechanical properties	tensile strength ≥ 3,000–4,500 MPa (higher for finer wires), breaking force ≥ 10 N (φ78 μm).
Precision tolerances	wire diameter tolerance ±0.6–1.0 μm, ovality ≤ 1.2 μm.
Low damage	Front-side chipping ≤ 3–5 μm, rear-side chipping ≤ 5–8 μm, damage layer ≤ 8–12 μm (for semiconductor applications).
Wide compatibility	Compatible with mainstream cutting equipment
Flexible customisation	Wire diameter, concentration and length are adjustable.
