CNC Wire Cutting Machine
SDRQ400 CNC Wire Cutting Machine
Professional loop wire cutting machine for optical glass, quartz, graphite, jade, stone, ceramics, mono/poly‑silicon, SiC, ferrite, epoxy boards, gemstones and other non‑metallic composites.
Overview
Product overview
1. Precision ball screws and hardened steel guide rails for high transmission accuracy. 2. Self‑developed control system – no computer needed; operated by handle and panel, can be mastered in 20 minutes. 3. Whole machine dust protection grade IP55. 4. Cutting principle: reciprocating loop motion of diamond wire, saving material and producing smoother cuts than traditional saw blades.
Features

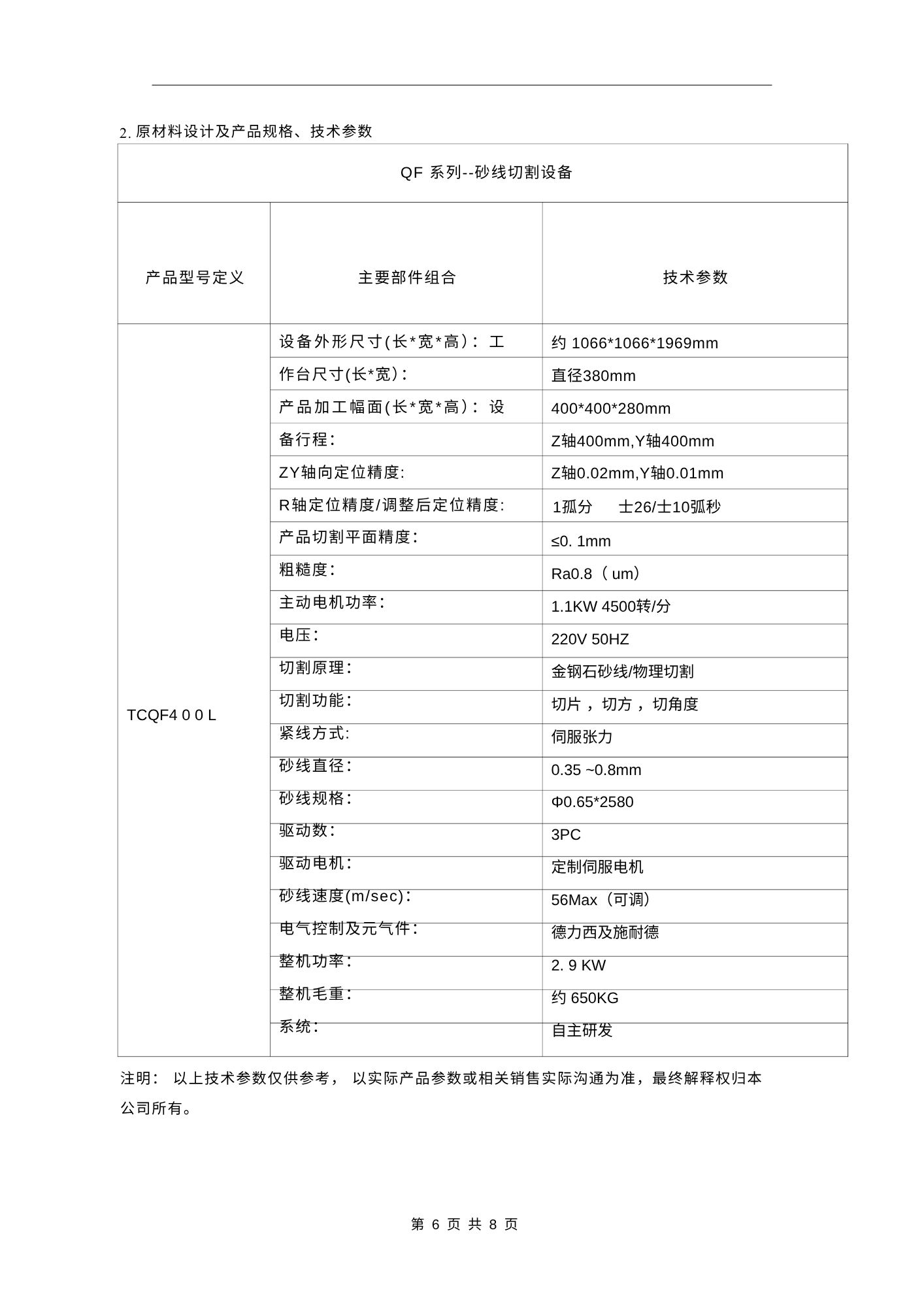

Key features and parameters
| Specification | Value |
|---|---|

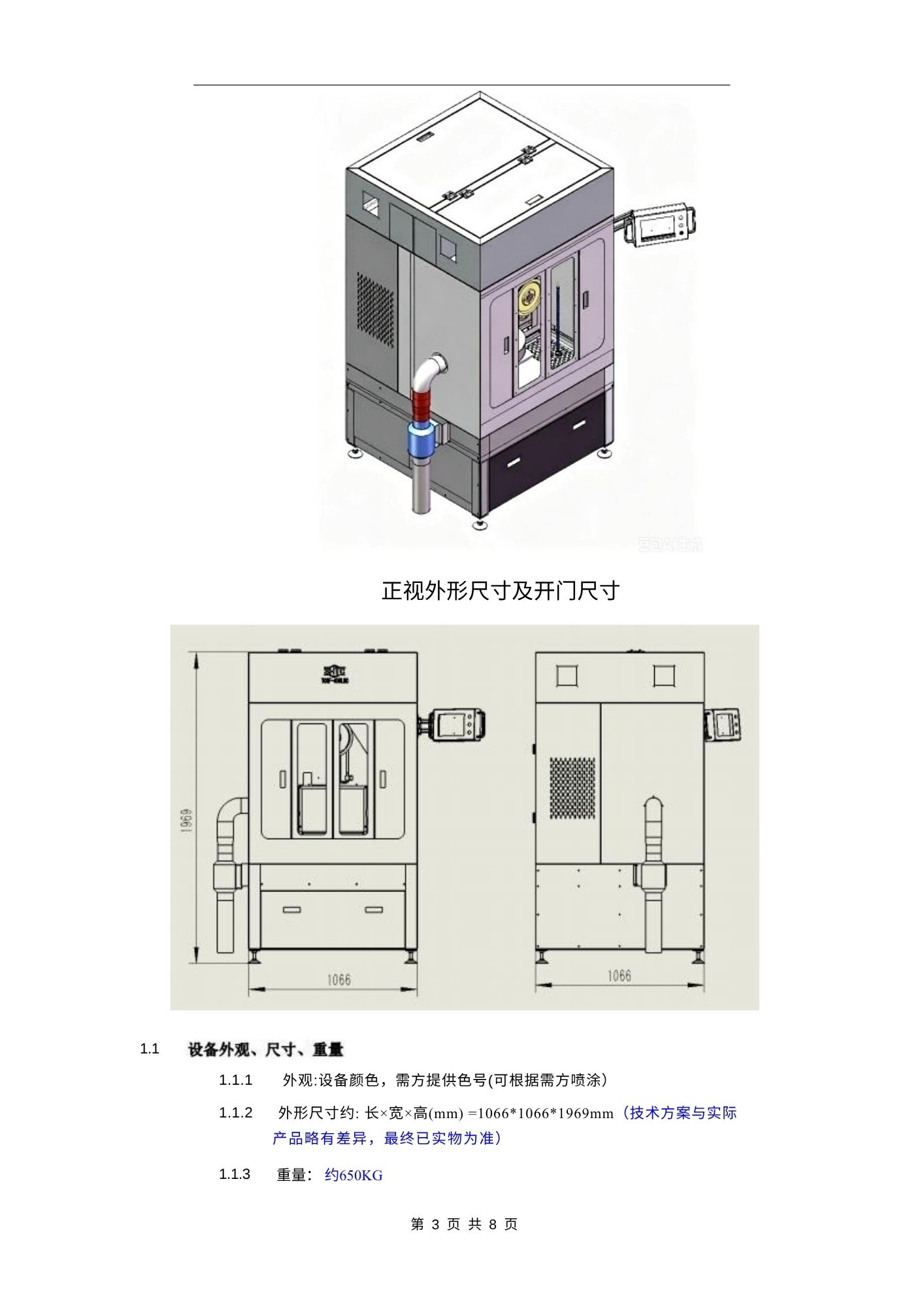

| Dimensions | approx. 1066×1066×1969mm |
| Table size | diameter 380mm |
| Processing range | 400×400×280mm |
| Z‑axis stroke | 400mm, Y‑axis stroke: 400mm |
| Positioning accuracy | Z 0.02mm, Y 0.01mm |
| Cutting flatness | ≤0.1mm |
| Surface roughness | Ra0.8μm |
| Wire speed | max 56m/s (adjustable) |
| Wire diameter | 0.35‑0.8mm |
| Weight | approx. 650KG |
